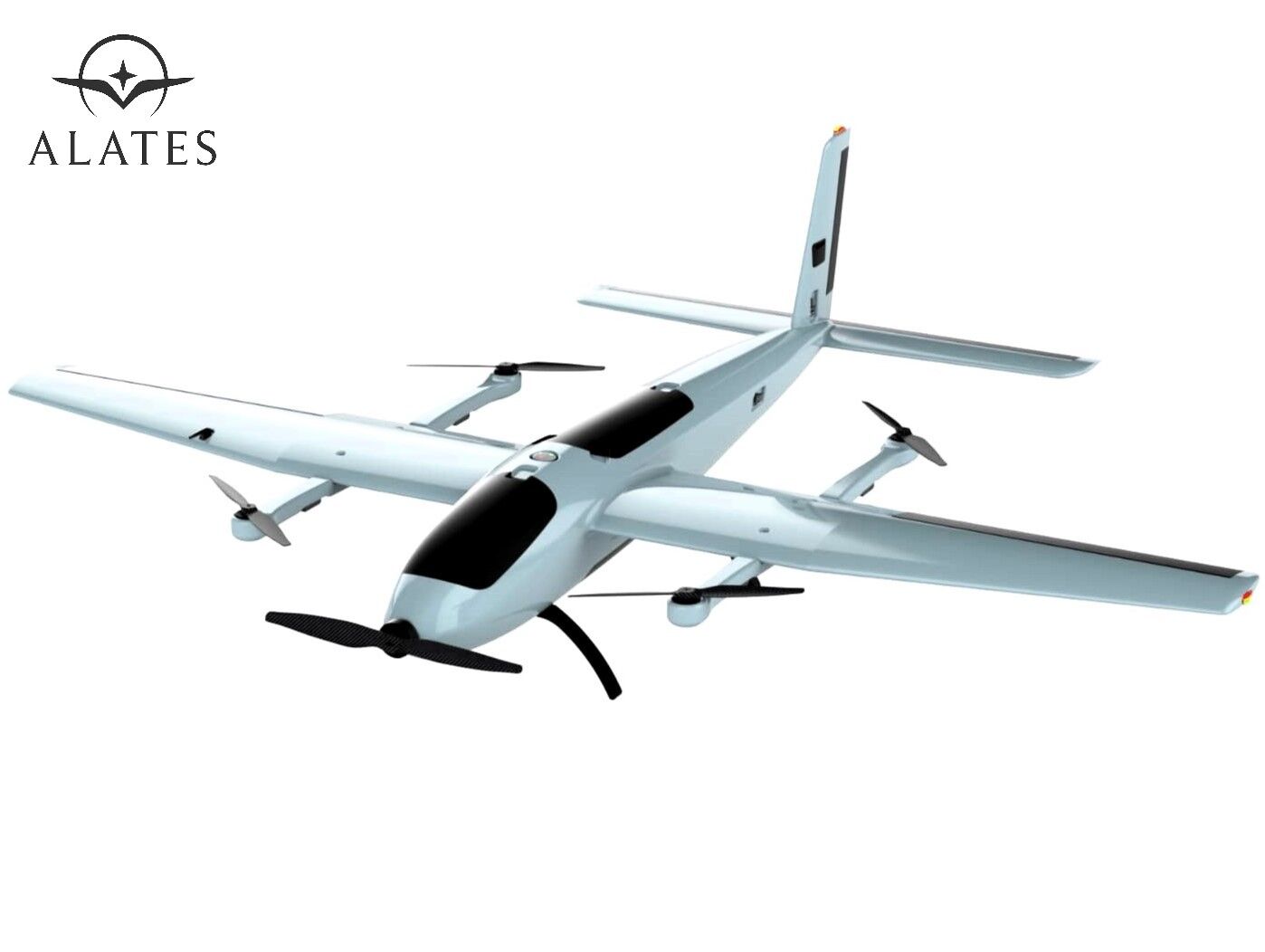

ALES 01 eVTOL for Surveillance and Mapping
|
Specification |
Details |
|
|
Body material |
Carbon fiber composite + Kevlar reinforcement |
|
|
Wingspan |
3.50 m |
|
|
Maximum flight speed |
35 m/s |
|
|
Economic cruising speed |
20 m/s |
|
|
Stall speed |
16 m/s |
|
|
Maximum range |
370 km |
|
|
Maximum payload |
5 kg |
|
|
Endurance (no payload) |
250 minutes |
|
|
Endurance (3 kg payload) |
150 minutes |
|
|
Wind resistance |
Level 6 |
|
|
Takeoff and landing mode |
Vertical takeoff and landing (VTOL) |
|
|
Power energy |
Dual 34000mAh 12s2p LiPo batteries |
|
|
Positioning accuracy |
RTK: 1 cm + 1 ppm |
|
|
Flight controller |
Advanced autopilot system (customizable) |
|
|
Communication distance |
Based on link data (optional long-range) |
|
|
DIY customization |
Flight controller, payload, coating, waterproofing, remote ID |
|
|
Ground station |
QGroundControl / Mission Planner / LGC |
|
|
Application scenarios |
Surveillance, mapping, inspection, logistics, public safety, delivery |
|
The ALES 01 eVTOL combines cutting-edge aerodynamics with robust composite construction for versatile performance in mapping, inspection, and logistics. Its split-design fuselage and quick-release payload system streamline operations, while the dual propulsion ensures seamless VTOL-to-cruise transitions. Ideal for high-precision tasks in challenging environments, the ALES 01 delivers reliability, endurance, and adaptability.
For pricing and customization options, contact our sales team. Shipping fees not included.
Wide-area Patrol: Equipped with ZT30 SIYI Thermal Imaging Camera
CUSTOM GROUND CONTROL STATION
